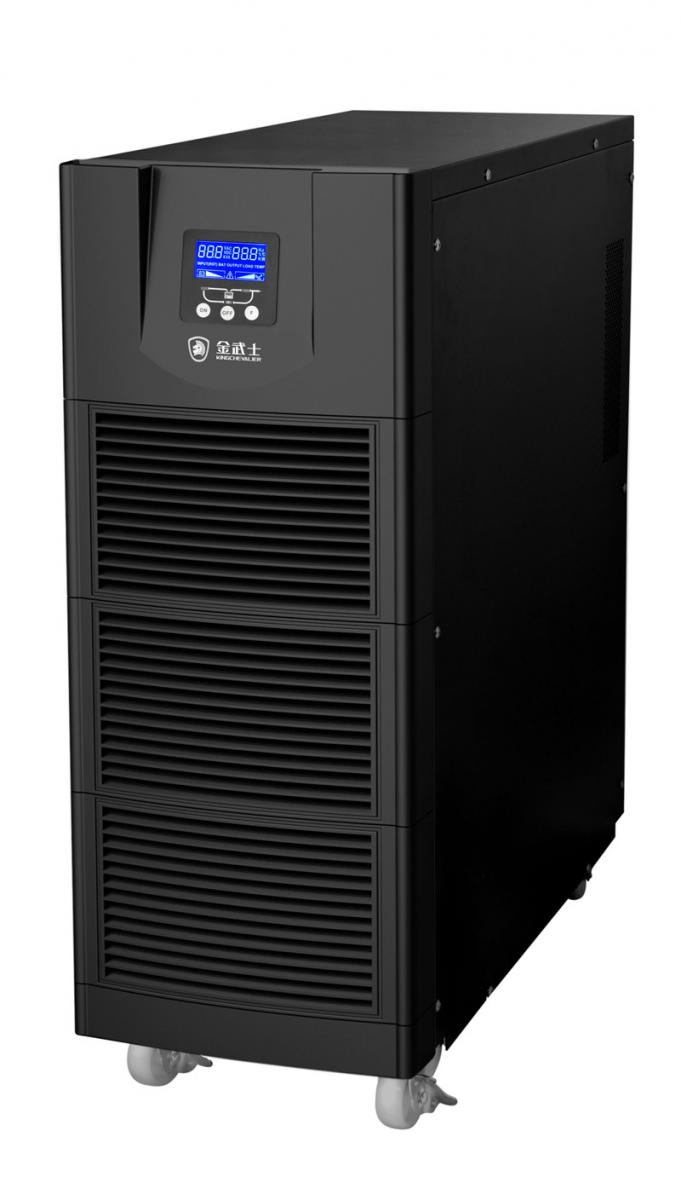

product power:8KW（千瓦）
product capacity:10KVA 【View products of the same capacity】
series:High frequency GT series 【View the same series of products】
voltage input and output:Single input single output (220V:220V)
weight:23 kg（ 公斤）
size（LWH）:260*533*501 MM（毫米）12U
Shape classification:
| capacity | 10KVA/9KW |
| model | GT10K |
| Rectifier type | IGBT rectifier |
| The rated voltage | 220Vac |
| Input voltage range | 120~275 VAC |
| Input frequency range | 40Hz~70Hz(adjustable) |
| Input power factor | >=0.99 |
| Rated output | 10KVA / 9000 W |
| Rated output voltage | 220Vac |
| The output frequency | 50/60 Hz +/- 0.5Hz |
| Way to work | on-line |
| Output waveform | Sine wave |
| Conversion time | 0ms |
| Overload capacity | 125%，50s |
| The battery model | Maintenance-free sealed lead-acid battery |
| Mark the machine backup time | Half-time: ≥11 minutes |
| Battery pack model | 12V7AHX6 |
| Typical battery charging time | Eight hours |
| The battery voltage | 192V |
| installation | tower |
| The machine efficiency | Up to 90% |
| Electromagnetic compatibility | ICE/EN/AS 62040-1；CISPR 22 A级 |
| Surge protection | ICE/EN 62040-2，meetICE/EN 61000-4-5 |
| Protection type | IP20 |
| Interface ports | RS232，Optional Wedpower card, AS400 card |
| The control panel | LED status indicator |
| The alarm | Power outage alarm once 4 seconds: special low battery alarm once per second |
| W | 260.00 mm |
| D | 533.00 mm |
| H | 501.00 mm |
| The weight of the | 23.00 KG |
| color | black |
| The work environment | 0 - 40 °C |
| Working relative humidity | 0 - 95% |
| Operating height | 0-1500M |
| Storage temperature | -5 - 45 °C |
| Storage relative humidity | 0 - 95% |
| Store height | 0-1500M |
| The auditory noise is 1 m above the device surface | <40.00 dB |
| The standard warranty | Repair or replacement within 3 years |
10KVA AC 220V input: AC 220V output
| Input parameters | |
| Input voltage | 220V AC |
| Enter the live wire diameter | 10mm2 |
| Input zero wire diameter | 10mm2 |
| Input ground wire diameter | 10mm2 |
| Input air switch | 80A -1P |
| Output parameters | |
| The output voltage | 220V AC |
| Output wire diameter | 16mm2 |
| Output neutral wire diameter | 16mm2 |
| Output ground wire diameter | 16mm2 |
| Output MCB | 80A -1P |
| Battery parameters | |
| External battery MCB | 100A-2P |
| External battery wire diameter | 10mm2 |
10KVA AC 380V input: AC 220V output
| Input parameters | |
| Input voltage | 380V AC |
| Enter the live wire diameter | 10mm2 |
| Input zero wire diameter | 10mm2 |
| Input ground wire diameter | 10mm2 |
| Input air switch | 80A -3P |
| Output parameters | |
| The output voltage | 220V AC |
| Output wire diameter | 16mm2 |
| Output neutral wire diameter | 16mm2 |
| Output ground wire diameter | 16mm2 |
| Output MCB | 80A -1P |
| Battery parameters | |
| External battery MCB | 100A-2P |
| External battery wire diameter | 10mm2 |
10KVA AC 380V input: AC 380V output
| Input parameters | |
| Input voltage | 380V AC |
| Enter the live wire diameter | 10mm2 |
| Input zero wire diameter | 10mm2 |
| Input ground wire diameter | 10mm2 |
| Input air switch | 80A -3P |
| Output parameters | |
| The output voltage | 380V AC |
| Output wire diameter | 10mm2 |
| Output neutral wire diameter | 10mm2 |
| Output ground wire diameter | 10mm2 |
| Output MCB | 80A -3P |
| Battery parameters | |
| External battery MCB | 100A-2P |
| External battery wire diameter | 10mm2 |
GT10K
